Renthal Road Racing Clip-On Handlebars

28068 Views 106 Replies 43 Participants Last post by  RidersDiscount
We've been a big believer in Renthal Road Racing Clip-On handlebars ever since they became available in the USA last summer. Just like their excellent motocross handlebars, the alignment marks were a very helpful touch for setting up everything the controls on our bikes. But, when we were installing out first set of 50mm clip-ons, we noticed a little something that was overlooked in their design - the fact that, unless you had a bike with a narrow section around the outer, upper triple clamp, it was difficult to see exactly where the alignment marks were located. While this wasn't a huge issue, it was something we thought should be addressed. So, after a phone call and an email, Renthal reported back to us that they were going to integrate our idea into their next run of Road Racing Clip-Ons. Now that's customer service!

This second generation of Renthal Clip-Ons includes everything that the original version does: precision alignment marks on both the fork tube clamps and handlebars but, when you look closely at the fork tube clamps, an extra chamfer was machined into the upper portion with the alignment marks on it. Now, for those bikes with thicker material on the upper triple clamp surrounding the fork tube, you can have a look at the clip-ons from the side, instead of through the pinch bolt area, to see exactly where your clip-ons on are lined up. This greatly sped-up the alignment process!

Renthal clip-ons are not yet available on our website, and this new design is only available on 50mm kits for the time being. Order a set by calling TJ at 866.931.6644 ext 817 for same day shipping! If you have any questions on specific fitment, please send an email to FORUM at RIDERSDISCOUNT dot COM with RENTHAL CLIP-ONS in the subject line, along with the model and year of the bike you ride and you can expect a very timely response.

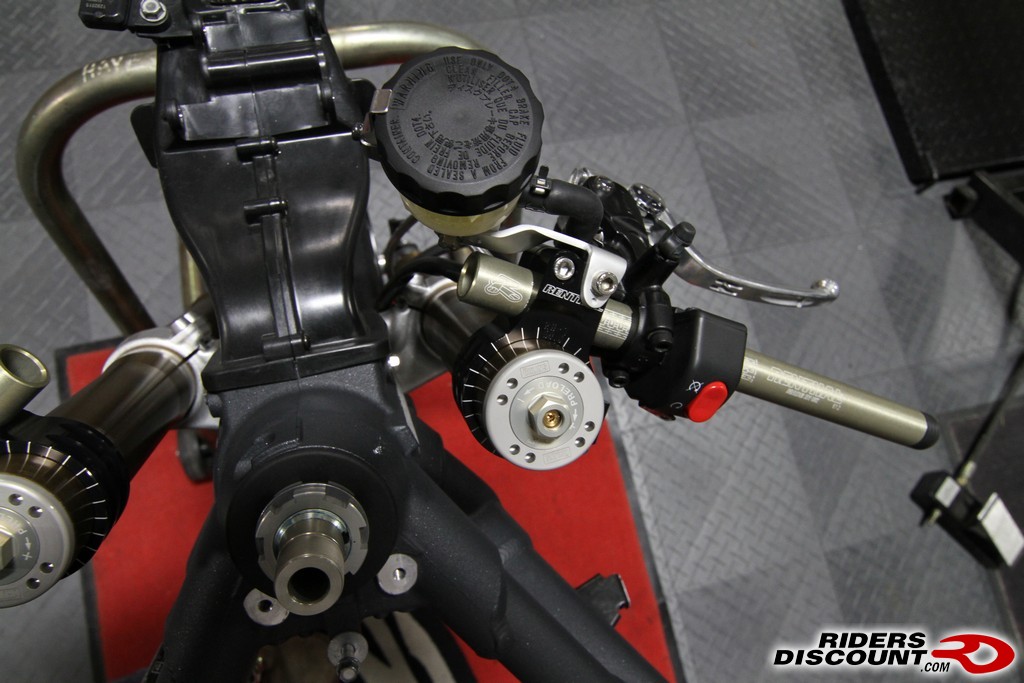

Renthal clip-ons have alignment marks smartly placed for a perfect, repeatable setup. With fork clamps machined from 7075-T6 series aluminum and handlebar tubes made with 7010 aluminum, the clip-ons are strong, lightweight and treated for good looks and corrosion resistance. Pictured below, you can see the original clip-on design without the extra chamfer on the fork tube clamp.


Here's the problem with the first generation design - you could only see the alignment marks through the pinch bolt area on most motorcycles.


The second generation Renthal clip-on fork tube clamp on the left, the first generation on the right. You can easily see the advantage of the new design.


While Renthal clip-ons are available for 48mm, 50mm, 51mm, 52mm and 53mm diameter fork tubes, currently only 50mm kits have the new chamfer machined into the clamp design.


Get these clip-ons by calling TJ at 866-931-6644 ext 817 and be sure to mention you're a Triump forum member. He can tell you exactly what size your bike needs. We always answer our emails - send those to - TJ at ridersdiscount dot com with the subject line 675 CLIP-ONS where you can send us your phone number and TJ will ring you back.

See less See more
6
  • Like
Reactions: 1
1 - 20 of 107 Posts
Price? How easy is it to find replacement bars? What do those cost? Do they have a solution for the break reservoir?
PM sent
  • Like
Reactions: 1
It sounds like a fine bar and it's super nice that it comes with grips but I have a feeling the racers are going to use the woodcrafts still because of the expense/availability of replacement bars. Thanks for getting back to me!
Cutter,

You can use any 7/8 inch bar as a replacement so I wouldn't let the replacement bars or their cost sway you.

As a matter of fact we originally sold out of the Renthal replacement bars within a matter of days because people were using them with other brands of Clip-On's.
man those are nice! might be calling you up for a set of these and a BMC street filter.
Hey TJ

What can you do on Renthal grips? Specifically the ones shown in the last picture. Shoot me a PM if you can.

Also, not sure if you know, but would we have to modify the stock clip-on for the grips to fit? I read something about grinding a notch off, would the grips fit without having to grind anything?

Thanks!

Btw flush mounts should have been delivered today! :thumbup:
Hey TJ

What can you do on Renthal grips? Specifically the ones shown in the last picture. Shoot me a PM if you can.

Also, not sure if you know, but would we have to modify the stock clip-on for the grips to fit? I read something about grinding a notch off, would the grips fit without having to grind anything?

Thanks!

Btw flush mounts should have been delivered today! :thumbup:
There are actually 3 different compounds of those grips available. Soft, Medium, and Firm.

I just checked our stock throttle tube and you would need to remove the tabs to install the aftermarket grips.
We've found it possible to re-use the OEM brake reservoir bracket, although in a slightly different configuration. All you need is a longer bolt to put it in place. Looks trick too!



See less See more
2
Thanks for the help TJ :thumbup:
Thank you as well! I appreciate the order and enjoy the clip-on's.
Excellent thinking on the bracket! Any idea the correct size bolt?
It was 10 mm longer then what came with the Renthal. I am going to run to Fastenal at lunch and get a few of the stainless ones so that if you order the clip ons we can send the bolt as well.

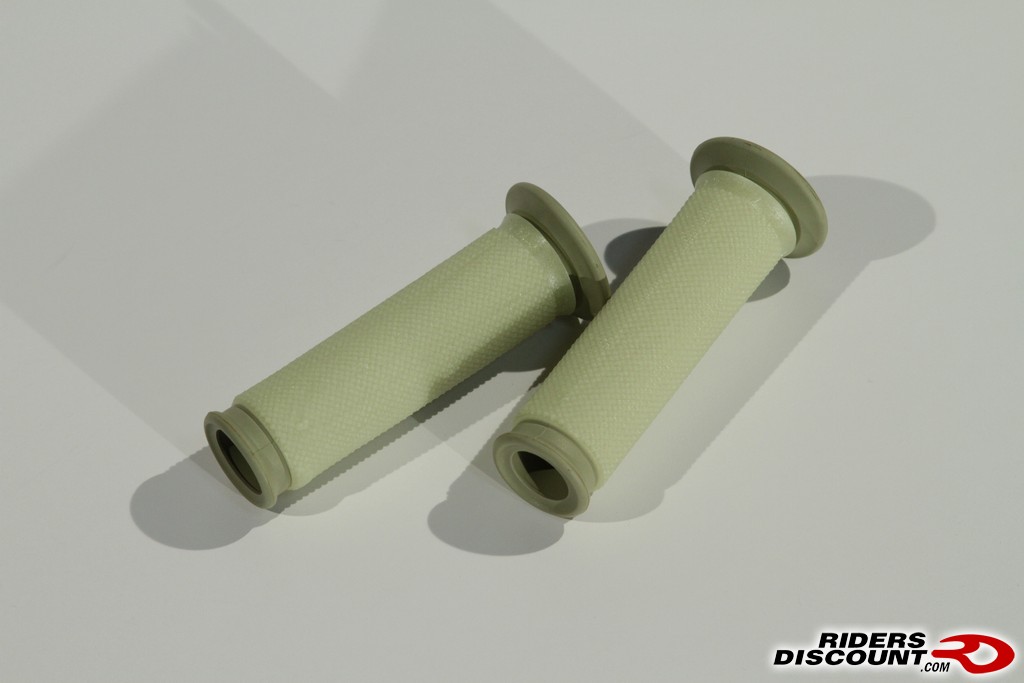

Renthal Dual Compound Kevlar-Reinforced Grips go great with a new set of clip-ons. While softer than Renthal's soft compound grips, these Kevlar grips can be expected to last three times as long!
See less See more
could you send a price for the renthals shipped please? i definitely interested in these soon. thanks.
Sending PM now
Very happy with mine :thumbup:
Definitely appreciate the feedback!
Thanks again for the order!
